HOW TO MAKE A DIY SLIDING DOOR BOOKSHELF
VIDEO BUILD WHERE I MAKE A BOOKSHELF WITH SLIDING HARDWARE WITHOUT USING MY WELDER!
In this video I get creative and build a reclaimed wood bookshelf. I use products from the local home store to DIY some sliding door hardware with no welder!
Check out the video and walk through below!
You can purchase a full plan HERE!
If you would like to attempt this project on your own, here are a few tools I recommend!
- Table Saw
- Tape Measure
- Impact Driver
- Drill
- Mitre Saw
- Jointer
- Graco Finish Pro HVLP
- Endurovar Finish
- 23g Pin Nailer
- Japanese Cut Off Saw
- Angle Grinder
Affiliate links are posted for your convenience and by using these links it provides support for the site at NO COST TO YOU. By purchasing anything through the links (even other products not listed) You help support the production of more quality content.
FULL TUTORIAL

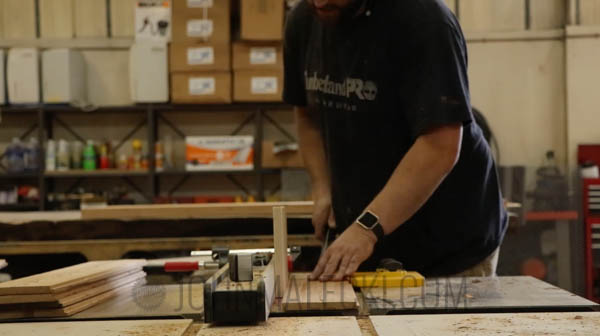

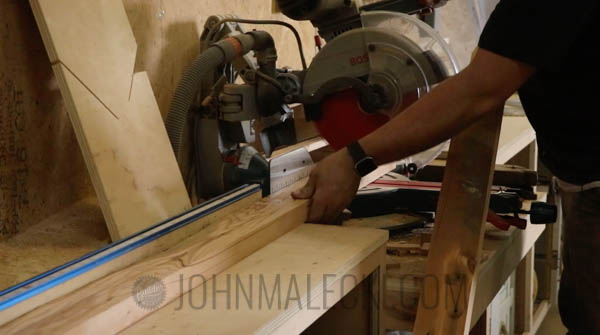

Breakdown Material/ Mill Stock
STEP 1

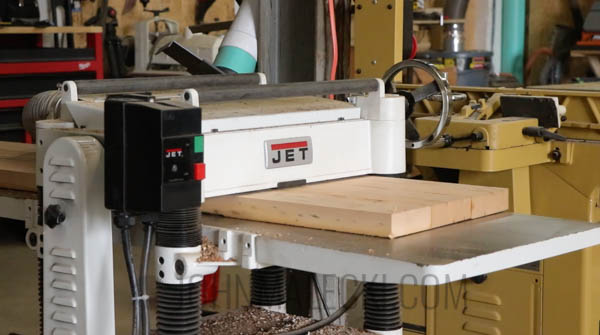

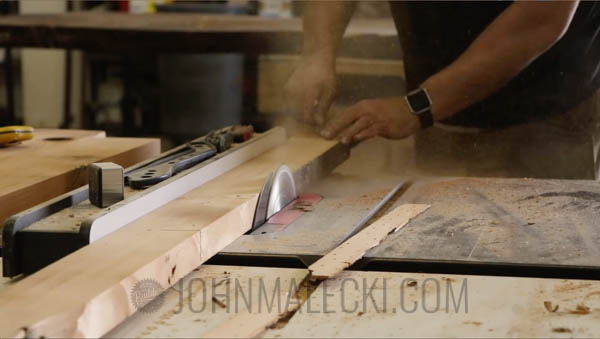

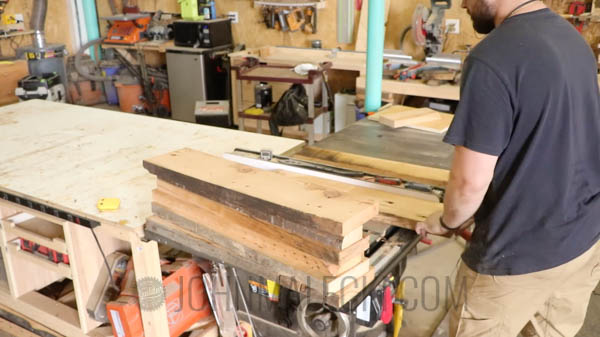

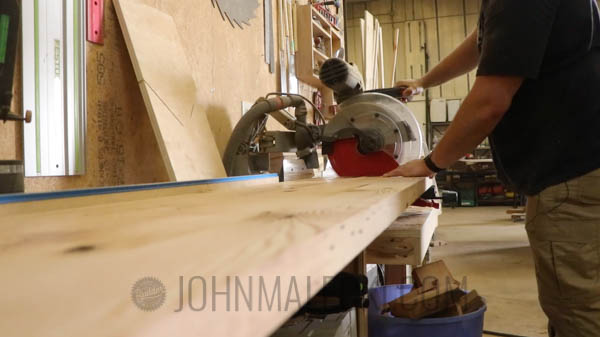

Begin by collecting your materials for the job. Pull all of the nails if you’re using reclaimed lumber. Flatten and joint each part to the cut list in the plans.
Glue Up Parts
STEP 2

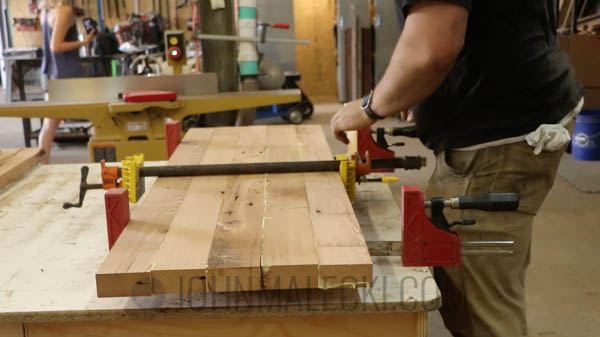

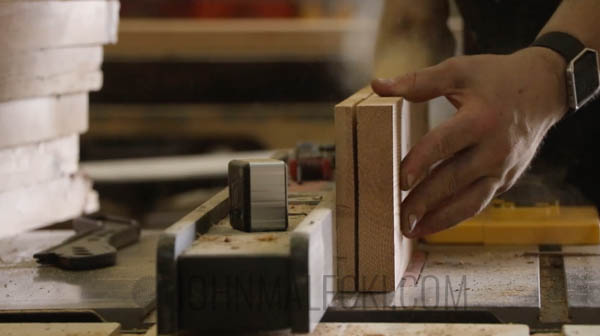

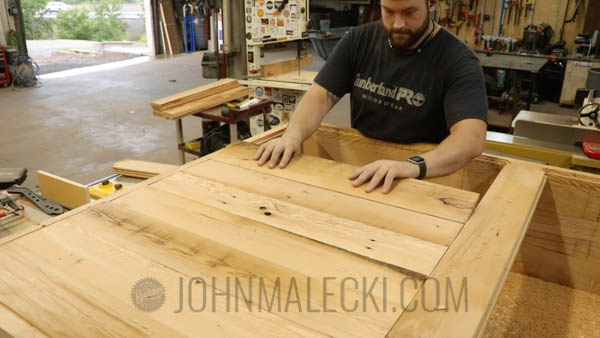

Once all of your rough cuts are square, glue up your panels. Start with the top, bottom, and two sides along with the back support. Once the panels dry cut and flatten them to final size and dimensions in the plans.
STEP 3

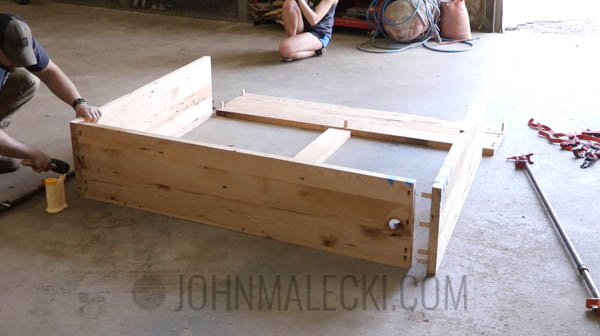

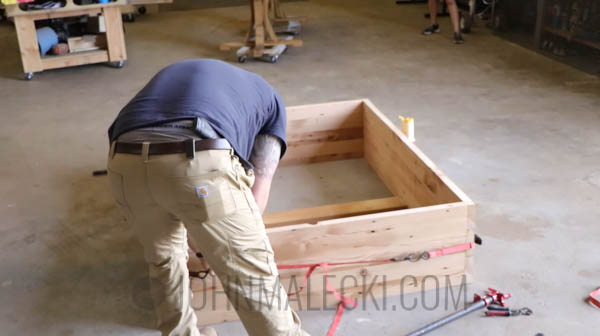

Joinery

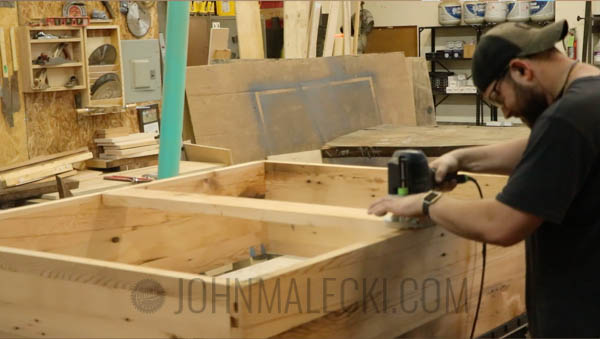

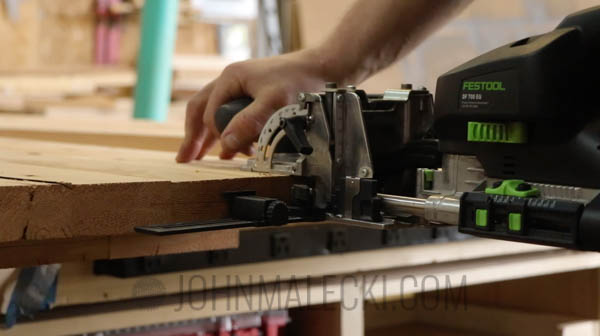

Mark and layout all of your joinery for the carcass assembly. Cut using the technique of your choice. I use my Domino XL. After clamping move onto the back panels .
STEP 4

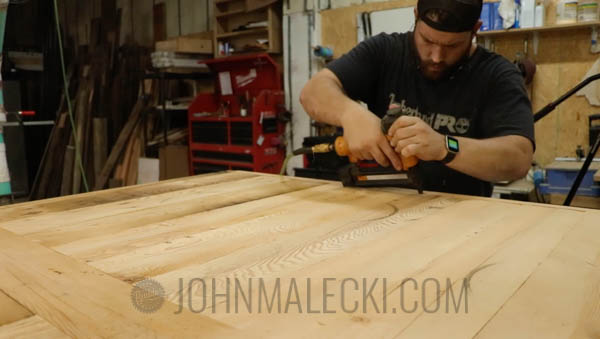

Back Panels

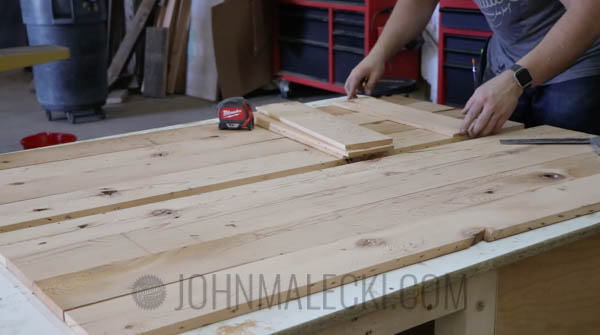

Re- saw or mill your back panel material of choice while the carcass dries. Cut your rabbets in the carcass and in the panels. Use the interior measurement in the carcass for your back panel measurement. Place panels and attach with glue and brad nails
STEP 5
Door & Shelf Assembly

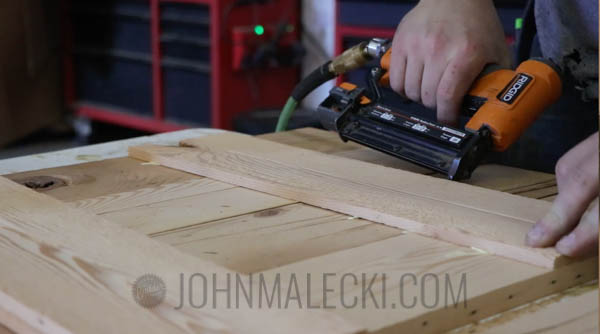

Rough cut door and shelf materials from the cut list. Assemble using glue and clamps for the shelves. Brad nails for the doors.
STEP 6

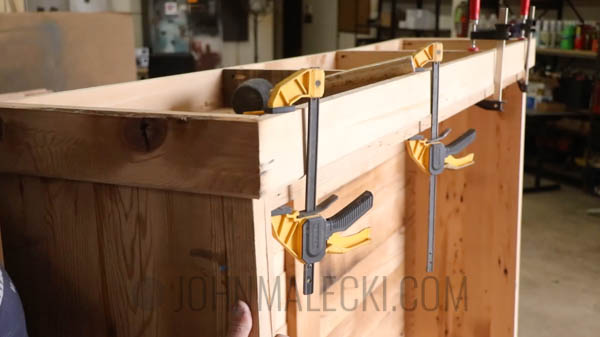

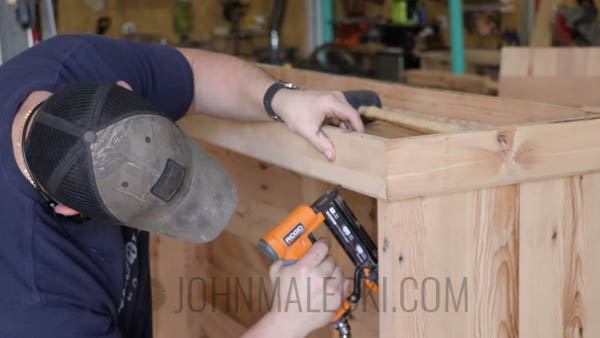

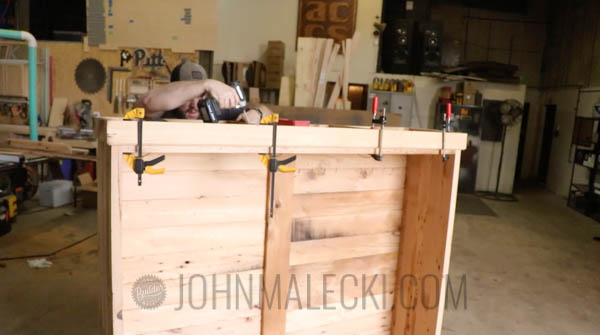

Trim and Molding

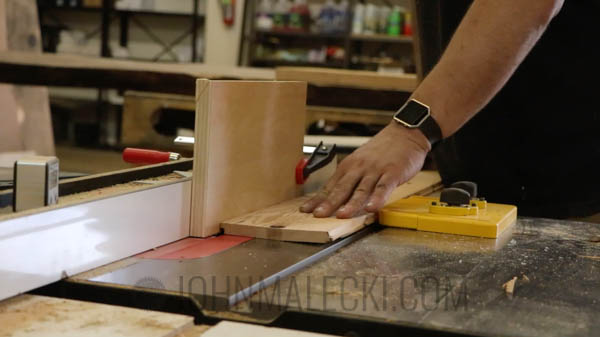

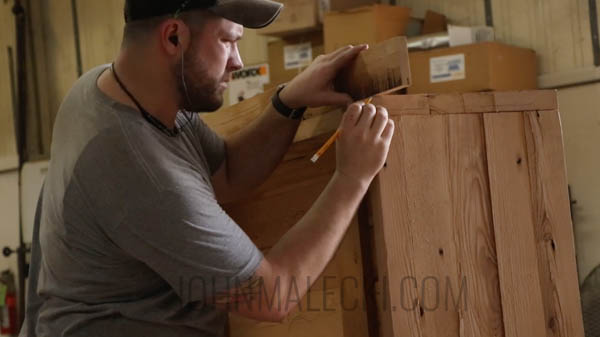

Cut all of your trim for the top and bottom according to the cut list. I use the carcass for reference to create my moulding. Cut a 1/4″ Chamfer on all moldings. Cut mitres and assemble with glue and 23g brads.
STEP 7

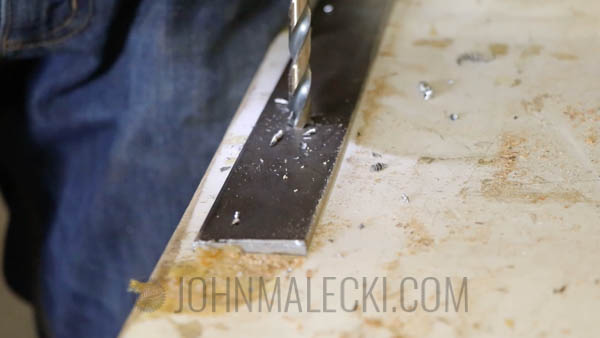

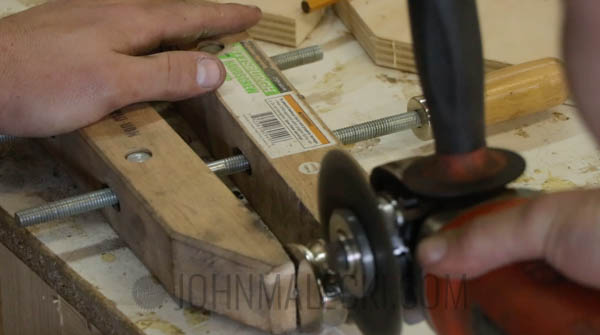

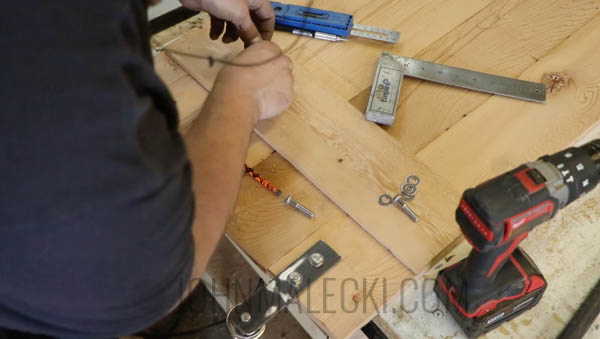

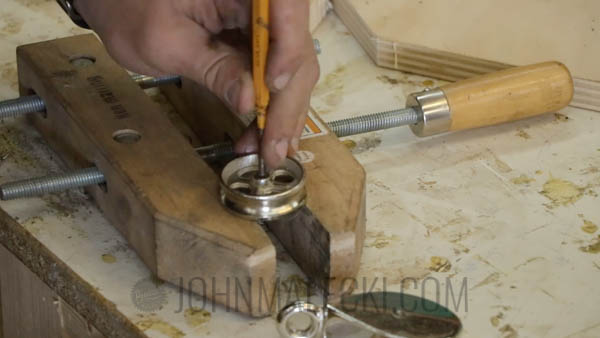

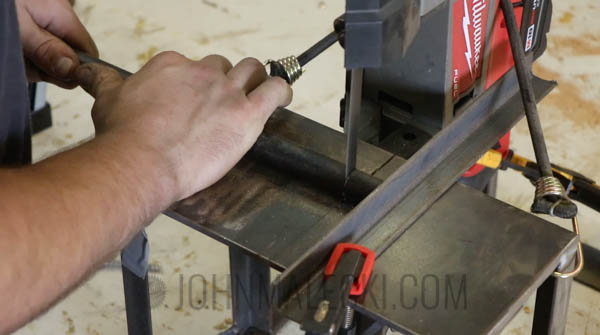

Sliding Hardware

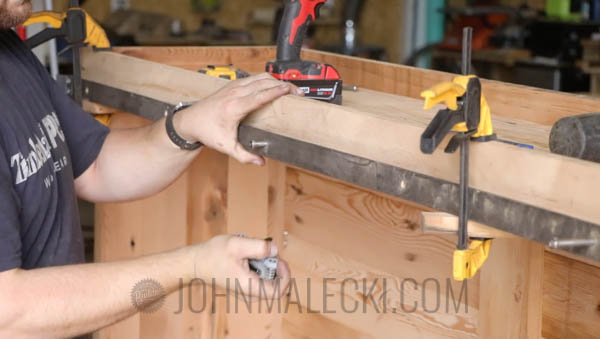

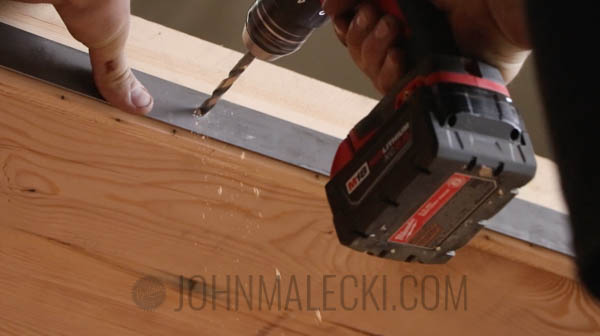

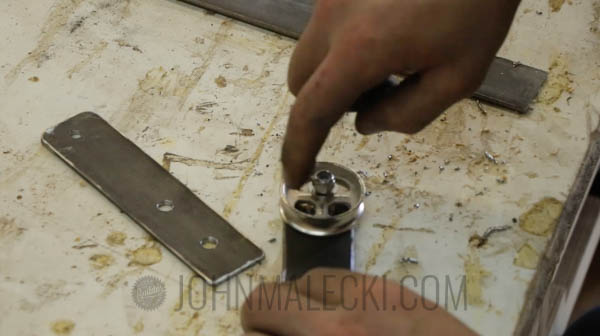

Refer to plans for full walk thru on hardware assembly. Use parts in cut list to create DIY hardware.
STEP 8
Finish

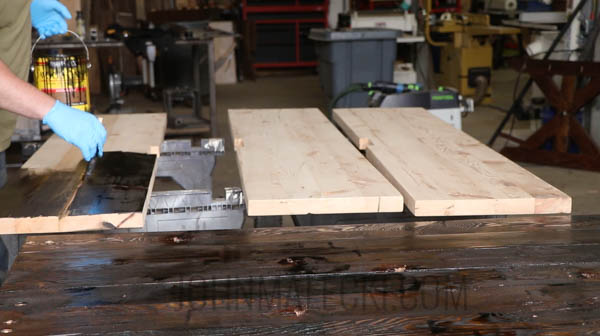

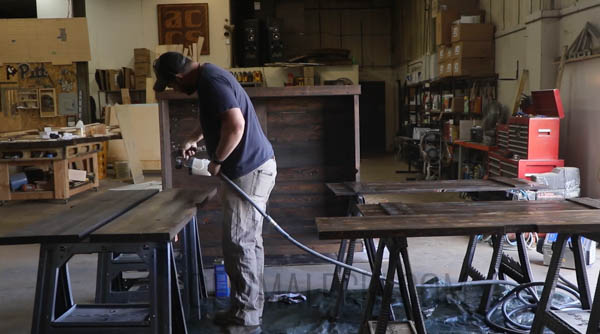

Sand everything to 150 grit with random orbit or hand sander of choice. Stain if you prefer and apply clear coat. Re-attach hardware and you’re done!
